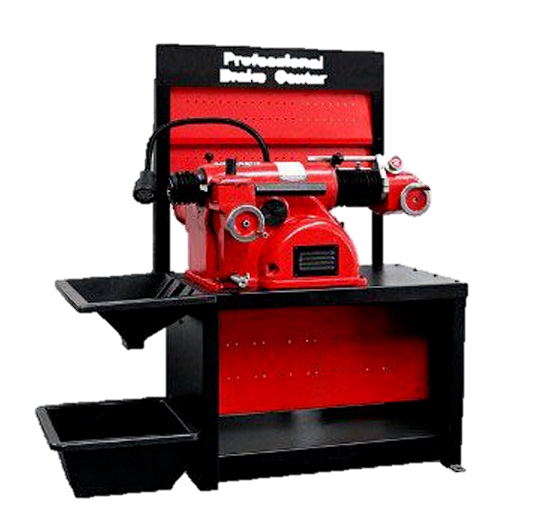

Model : C9350 – Brake Lathe
$13,600.00
Skip to product information
Model : C9350 – Brake Lathe
$13,600.00

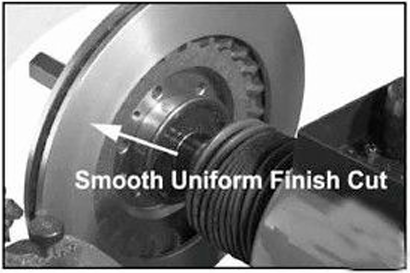

- Quickly, accurately and efficiently cutting both the drum and rotor.
- Fast and slow setting.
- Three kinds of speed to choose for spindle speed.
- A convenient design to quickly change from rotor to drum.
- Stop automatically after the cutting.
Includes
| Name | Qty |
| Twin Cutter | 1 |
| Arbor (1" / 25.4 mm) with nut, combination washer, flat washer and tie rod |
1 |
| Plastic Safety Shield | 1 |
| Open-End Wrench (27—30mm) | 1 |
| Square Wrench | 1 |
| V-belt A610 | 1 |
| Cutting Bar | 3 |
| Silencing Belt for Rotor and Drum | 2 |
| Taper Cone (30 x 44 mm) | 1 |
| Taper Cone (31 x 57 mm) | 1 |
| Taper Cone (45 x 70 mm) | 1 |
| Taper Cone (59 x 75 mm) | 1 |
| Taper Cone (66 x 82 mm) | 1 |
| Taper Cone (74 x 90 mm) | 1 |
| Taper Cone (85.8 x 103 mm) | 1 |
| Double Taper Cone 1.34" x 1.66" | 1 |
| Double Taper Cone 1.36" x 1.69" | 1 |
| Double Taper Cone 1.72" x 2.06" | 1 |
| Double Taper Cone 2.06" x 2.44" | 1 |
| Double Taper Cone 2.45” x 2.81" | 1 |
| Spring | 1 |
| Clamp (94 mm) | 2 |
| Clamp (116 mm) | 2 |
| Clamp (146 mm) | 2 |
Specifications
| Item | C9350 |
| Spindle Travel | 6.875" (175 mm) |
| Spindle Feed Speed | 0.002" (0.05 mm) - 0.02" (0.5 mm) Rev |
| Handwheel Thickness | 0.002" (0.05 mm) |
| Rotor Thickness | 1.875" (48 mm) |
| Drum Depth | 6.875" (175 mm) |
| Gross Weight | 290 kg |
| Spindle Speed | 7088118 RPM |

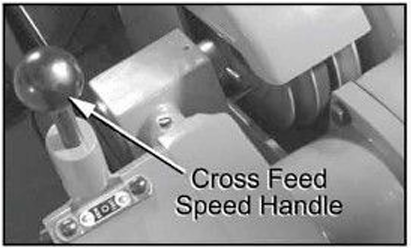

| Cross-feed speed | 0.002" (0.05 mm) - 0.02" (0.5 mm) Rev |
| Rotor Diameter | 7"-15" (180-381 mm) |
| Drum Diameter | 6"-17.7" (152-450 mm) |
| Motor | 110 V/220 V/380 V 50/60 Hz |
| Dimension | 1010 x 950 x 1150 mm |
