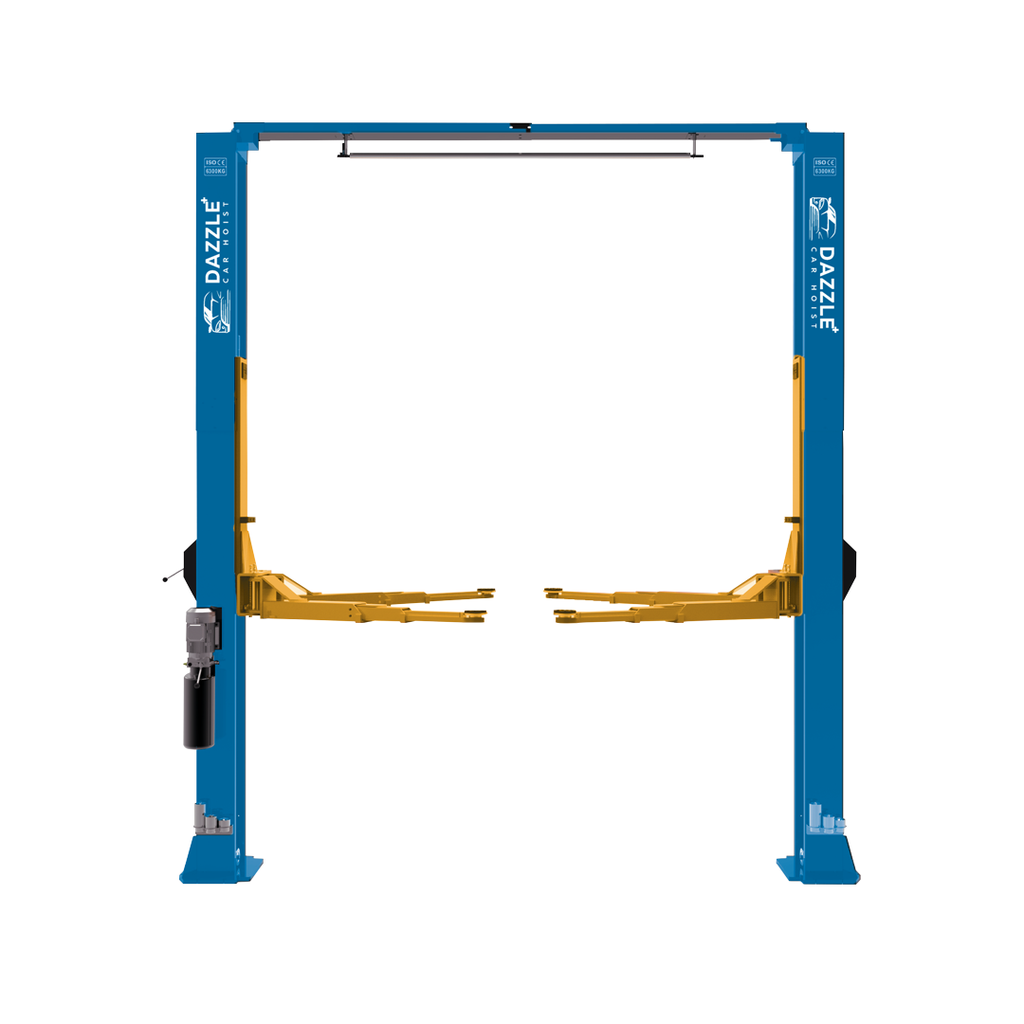

Model: L26CS - 6.3 Ton hoist

The Clear Floor Two Post Lift features a manual safety lock release from one side and a safe, reliable, bending plate-type carriage design. It includes an external safety lock for easy inspection and maintenance, along with dual limit switches that help extend cylinder lifespan and enhance vehicle safety. The straight-top cylinder design ensures smoother operation. Additionally, the lift is treated with a surface shot-blasting process and then electrostatic powder spraying, which gives strong surface adhesion and a durable powder-coated finish. It has successfully passed testing for 115% dynamic and 150% static load capacity.

• Features

  • Capacity: 6300 kg
  • Lock Release: One-point manual unlock release
  • Power Supply: 230 V, 50 Hz 1-phase or 400 V, 50 Hz 3-Phase
  • Power: 3.0 kW
  • Lifting Height: 1,900 mm
  • Lifting Height with Adapters: 2,000 mm
  • Width Between Columns: 3,300 mm

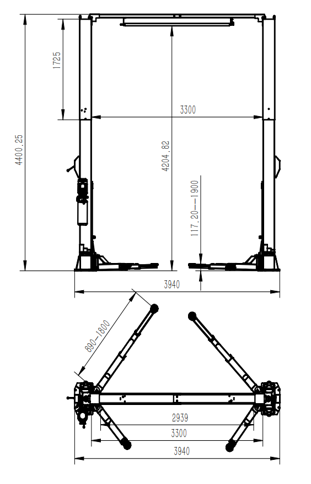

  Specifications

  • Minimum Concrete Requirement: 300 mm
  • Recommended Ceiling Height: ≥ 4,500 mm
  • Minimum Pad Height: 117.2 mm
  • Overall Hoist Height: 4,400.25 mm
  • Overall Hoist Width: 3,940 mm
  • Drive-through clearance: 2,939 mm
  • Hoist lifting-up time: 50 sec
  • Hoist lowering Time: 40 sec
  • Arm Design: 3+3
  • Freight Dimensions: 2,820 * 1,070 * 710 mm

  Includes

  • Screw Pad
  • Pad Height Adapter
  • Wedge Anchor Bolts
  • Hydraulic Oil

• Why you should buy Dazzle hoists

  • Backed by a 5-year structural warranty
  • Equipped with a durable, long-lasting aluminium motor
  • Certified by Australian WorkSafe for safety compliance
  • CE certified to meet international quality and safety standards
