Model: L460A - 6 Ton hoist

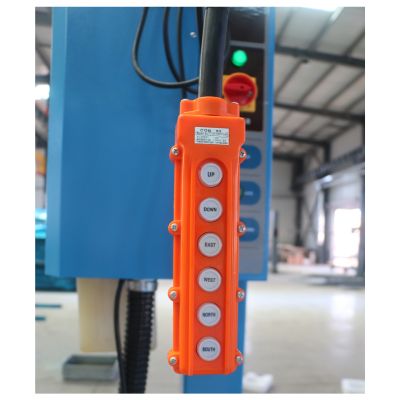

The four-post car hoist features an electric release and a reliable mechanical safety locking system. Its 225 mm low-profile runways allow for effortless drive-on and drive-off access. Equipped with a height limit switch, it ensures the runways and cylinders operate within a safe stroke range. To prevent rapid descent caused by hydraulic leakage, the hoist incorporates a flow-control technique within the hydraulic system. The structure is treated with surface shot blasting and electrolytic powder spraying, which gives it strong surface adhesion and a durable powder-coated finish. It has been rigorously tested to meet 115% dynamic and 150% static load capacity standards.

• Features

  • Capacity: 6000 kg
  • Lock Release: Electrolytic lock
  • Available 400v 50Hz 3-phase power
  • Power: 2.2 kW

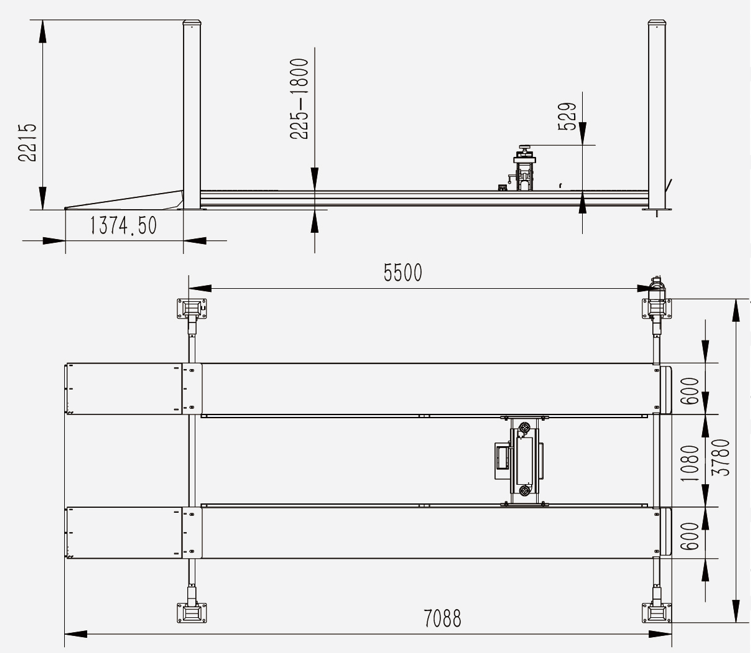

  • Lifting Height: 1,800 mm
  • Lifting Height of JACK: 529 mm
  • Width Between Columns: 3,415 mm

  Specifications

  • Minimum Concrete Requirement: 300 mm
  • Recommended Ceiling Height: ≥ 2300 mm
  • Minimum Pad Height: 225 mm
  • Overall Hoist Height: 2,215 mm
  • Overall Hoist Width: 3,780 mm
  • Drive-through clearance: 3,380 mm
  • Hoist lifting Time: 50 sec
  • Hoist lowering Time: 40 sec
  • Freight Dimensions: 4,650 * 710 * 2,000 mm
  • Product finishing: Durable powder coating

  Includes

  • Hydraulic Oil

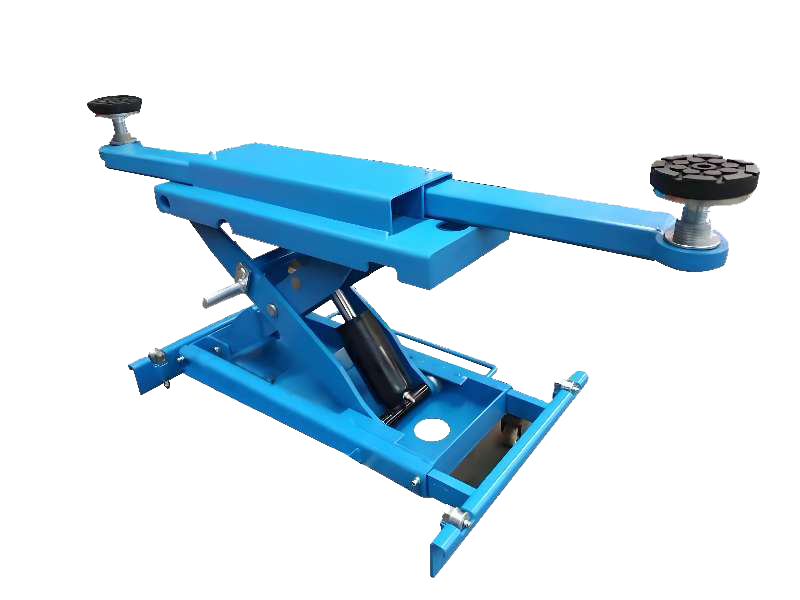

  • Two Rolling Jacks



• Why you should buy Dazzle hoists

  • Backed by a 5-year structural warranty
  • Equipped with a durable, long-lasting aluminium motor
  • Certified by Australian WorkSafe for safety compliance
  • CE certified to meet international quality and safety standards

Call: 0451778015
