Model: L65E - 3.5 Ton Scissor Hoists
$3,300.00

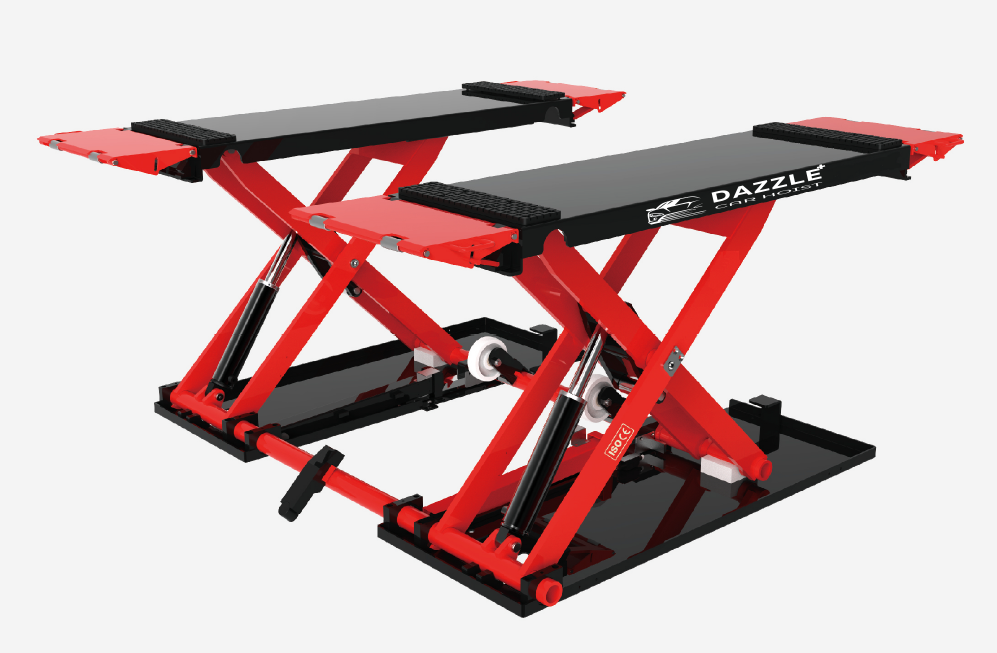

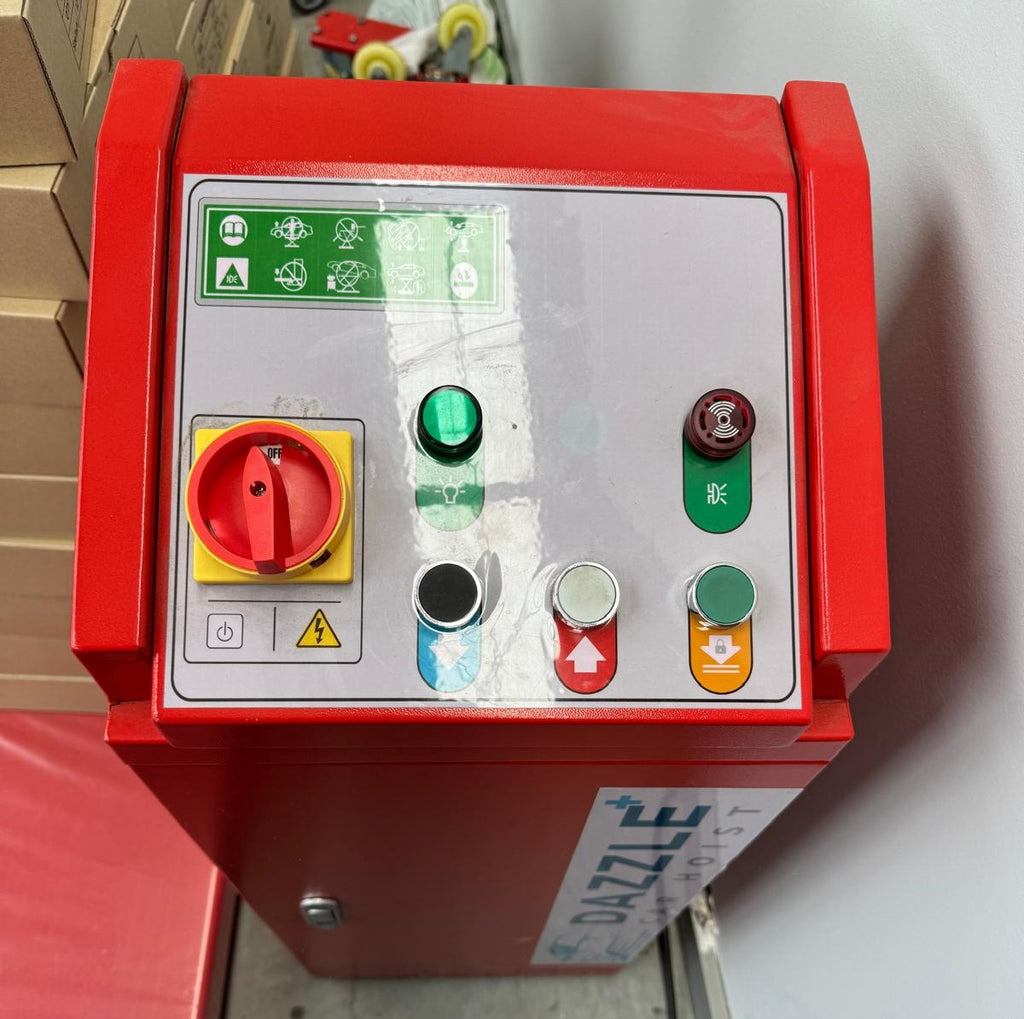

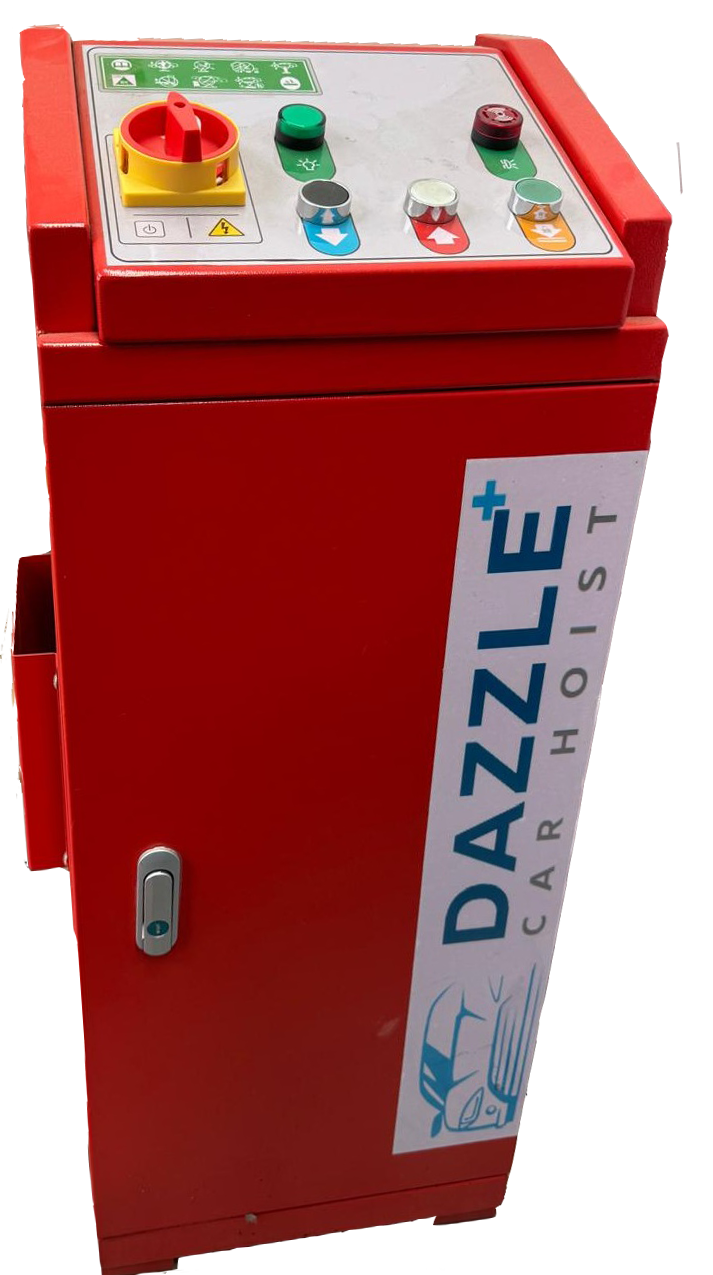

The Mid-Rise Scissor Lift features an electrical safety lock release and a low-profile, above-ground design that requires minimal space. It is equipped with a seamless steel pipe connecting platform to ensure stable operation and offers a mobile-type structure for user convenience. The fixed control cabinet includes a standard aluminium motor that prevents overheating and ensures a long service life. The lift undergoes a sandblasting process followed by electrostatic powder spraying, providing strong surface adhesion and a durable powder-coated finish. It has been tested to meet 115% dynamic and 150% static load capacity standards.
-
Features
- Capacity: 3500 KG
- Lock Release: Electrolytic lock
- Power: 2.2 kw
- Lifting Height: 1000mm
-
Specifications
- Overall Hoist Minimum Height: 110mm
- Overall Hoist Maximum Height: 1000mm
- Overall Hoist Width: 1955mm
- Platform Length: 1430 mm
- Platform Width: 530 mm
- Lifting Time: 40 sec
- Lowering Time: 30 sec
- Freight Dimensions: 1850*1600*820mm
- Available 240V or 1-phase power
- Product finish: Powder-coated
-
Includes
- Hydraulic Oil
- Rubber Block
- Rubber Pad
-
Why you should buy Dazzle hoists
- Backed by a 5-year structural warranty
- Equipped with a durable, long-lasting aluminium motor
- Certified by Australian WorkSafe for safety compliance
- CE certified to meet international quality and safety standards
