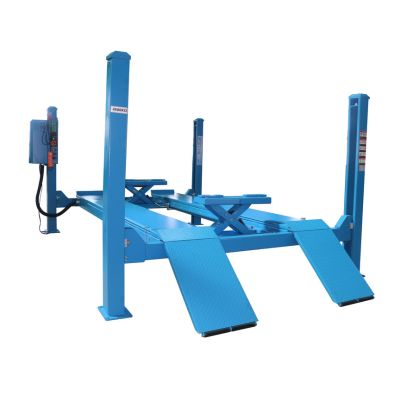

Model: L440E - 4.5 Ton hoist

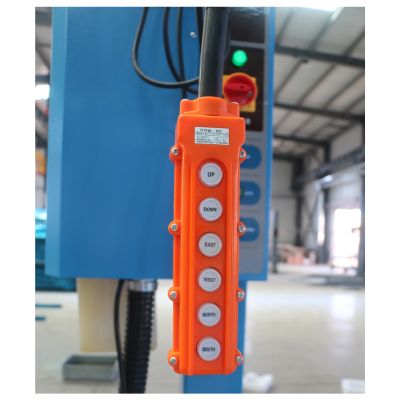

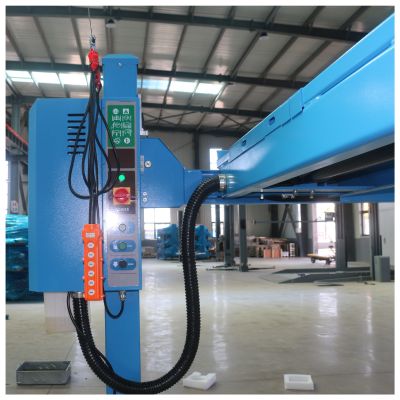

The four-post car hoist features an electric release and a reliable mechanical safety locking system. Its 225 mm low-profile runways allow for easy drive-on and drive-off access. Equipped with a height limit switch, it ensures the runways and cylinders operate within a safe stroke range. To prevent rapid descent caused by hydraulic leakage, the hoist incorporates a flow-control technique within the hydraulic system. The structure undergoes a surface shot blasting process and electrolytic powder spraying, resulting in strong surface adhesion and a durable powder-coated finish. It has been rigorously tested to meet 115% dynamic and 150% static load capacity standards.

• Features

  • Capacity: 4,500 KG
  • Lock Release: Electrolytic lock
  • Power: 2.2 kw
  • Lifting Height: 1,830 mm
  • Lifting Height of JACK: 450 mm
  • Width Between Columns: 2705.6 mm

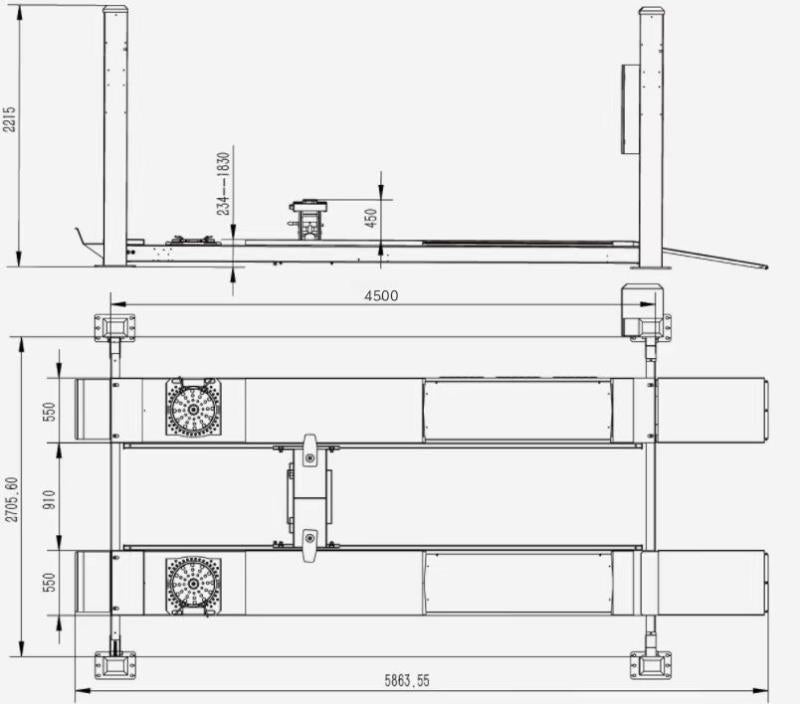

• Specifications

  • Minimum Concrete Requirement: 300 mm
  • Recommended Ceiling Height: ≥ 2,300 mm
  • Minimum Pad Height: 234 mm
  • Overall Hoist Height: 2,215 mm
  • Overall Hoist Width: 3,344 mm
  • Drive-through Clearance: 2705.6 mm
  • Lifting Time: about 50 sec
  • Lifting Down Time: 40 sec
  • Freight Dimensions: 4,520 * 700 * 990 mm
  • Available 400v 50Hz 3-phase power
  • Finishing with powder Coating



• Includes

  • Hydraulic Oil

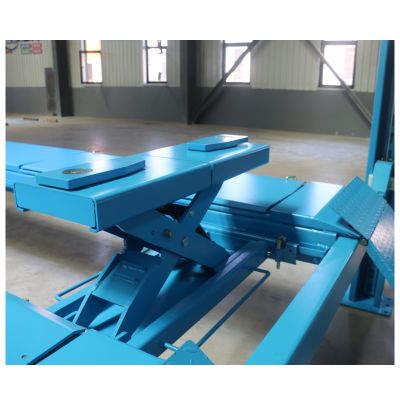

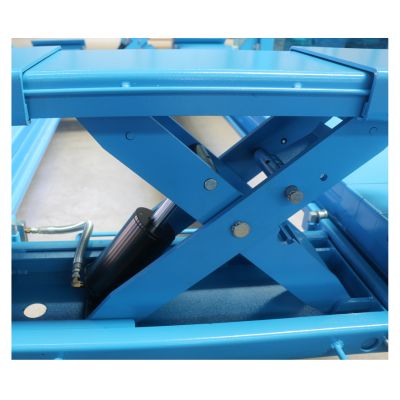

  • Two Rolling Jacks

• Why you should buy Dazzle hoists

  • Backed by a 5-year structural warranty
  • Equipped with a durable, long-lasting aluminium motor
  • Certified by Australian WorkSafe for safety compliance
  • CE certified to meet international quality and safety standards

Call: 0451778015
